RCO-3000-CFL

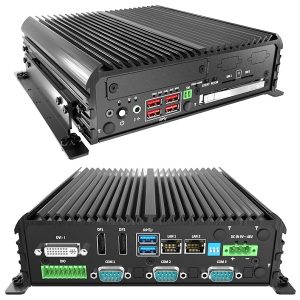

Calculator industrial rugged fanless cu procesor Intel Core i7, i5 sau i3, 5 porturi seriale, 2 porturi Gigabit Ethernet
- Design fara componente in miscare si de dimensiuni reduse;
- Procesor: Intel Core CFL-R S 8/9th Gen i7/i5/i3 sau Celeron/Pentium;
- Memorie: max. 64GB DDR4;
- Video: Triple Display, 1 x DVI-I, 2 x Display Port, pana la 4096 x 2304;
- Stocare: mSATA, HDD/SSD cu RAID 0,1,5;
- Retea: Gigabit LAN x 2;
- Seriale: RS-232/422/485 x 5;
- Porturi: USB 3.0 x 4, USB 2.0 x 4;
- Expansiune: Mini-PCIe x 2;
- DI / DO: 8in, 8out cu izolatie;
- Temperatura de functionare: -25 ~ 60 °C.
ALTE DETALII TEHNICE GASITI MAI JOS IN PAGINA.
Specificatii
Modele si Accesorii
Specificatii
| Sistem | |
| Procesor | Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP) |
| – Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz | |
| – Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz | |
| – Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz | |
| – Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz | |
| – Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz | |
| – Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz | |
| – Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz | |
| – Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz | |
| – Intel® Core™ i3-8100T, 4 Cores, 6MB Cache, 3.1 GHz | |
| – Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz | |
| – Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GHz | |
| System Chipset | Intel® Q370 Express Chipset |
| LAN Chipset | GbE1: Intel I219LM (Support Wake-on-LAN and PXE) |
| GbE2: Intel I210-AT (Support Wake-on-LAN and PXE) | |
| Audio Codec | Realtek ALC888S |
| Memorie | 2x 260-Pin DDR4 2400/2666MHz SODIMM. |
| Max. up to 64GB (Un-buffered and Non-ECC) | |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Monitor | |
| VGA | Yes (by optional split cable) |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| DisplayPort | 2x DisplayPort, support resolution 4096 x 2304 |
| Multiple Display | Triple Display |
| Stocare | |
| SSD/HDD | 1x Internal 2.5″ SATA HDD Bay (support H=9mm) |
| 1x Removable 2.5″ SATA HDD Bay | |
| (support H=7mm, hot-swappable) Support RAID 0, 1, 5 | |
| mSATA | 1x mSATA (Shared by 1x Mini PCI Express) |
| M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi) |
| SIM Socket | 2x External SIM socket |
| Expansiune | |
| Graphics | 2x Full-size Mini PCIe (1x shared by 1x mSATA) |
| Mini PCI Express | 2x Full-size Mini PCIe (1x shared by 1x mSATA) |
| I/O | |
| COM | 3x RS-232/422/485 |
| 2x RS-232/422/485 (internal) | |
| USB | 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 2.0 (2x internal) |
| LAN | 2x RJ45 |
| Audio | 1x Line-out |
| DIO | 8 in / 8 out (Isolated) |
| Universal I/O Bracket | 1x Universal I/O Bracket (By mini PCIe interface) |
| Others | 5x WiFi Antenna Holes |
| 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off | |
| 1x PC/Car Mode Switch, 1x Delay Time Switch | |
| Alimentare | |
| Intrare | AT/ ATX 9~48VDC |
| Conector alimentare | Bloc terminal cu 4 pini |
| Power Ignition Sensing | Power Ignition Management |
| Power Adaptor | Optional AC/DC 24V/11.67A, 280W |
| Optional AC/DC 24V/9.2A, 220W | |
| Power Protection | OVP (Over Voltage Protection) |
| OCP (Over Current Protection) | |
| Reserve Protection | |
| Caracteristici de mediu | |
| Temperatura de operare | -25°C to 60°C (35W CPU) ; -25°C to 50°C (65W CPU) |
| Temperatura de stocare | -30°C to 85°C |
| Umiditate | 10% to 95% (non-condensing) |
| Caracteristici mecanice | |
| Carcasa | Extruded Aluminum with Heavy Duty Metal |
| Dimensiuni | 192 (W) x 197 (D) x 57.4 (H) mm |
| Greutate | 2.8 ~ 3.6 kg |
| Montaj | Wall Mounting |
| DIN-Rail Mounting (Optional) | |
| Certificari | |
| Vibratii | With SSD: 5 Grms, 5 – 500 Hz, 0.5 hr/axis |
| With HDD: 1 Grms, 10 – 500 Hz, 0.5 hr/axis | |
| Socuri | With SSD: 50G, half sine, 11ms |
| Standarde | CE, FCC Class A |
Modele si Accesorii
| Modele | |
| RCO-3000-CFL | Advanced Fanless Embedded System with Intel® 8th/9th Gen Processor and Q370 PCH |
| RCO-3000-CFL-4L | Advanced Fanless Embedded System w/ LGA 1151 for Intel® 8th/9th Gen CPU & Q370 PCH, 6x LAN |
| RCO-3000-CFL-4LM12 | Advanced Fanless Embedded System w/ LGA 1151 for Intel® 8th/9th Gen CPU & Q370 PCH, 2x LAN, 4x M12 LAN |
| RCO-3000-CFL-D10G | Advanced Fanless Embedded System w/ LGA 1151 for Intel® 8th/9th Gen CPU & Q370 PCH, 2x LAN, 2x 10G LAN |
| RCO-3000-CFL-4U3 | Advanced Fanless Embedded System w/ LGA 1151 for Intel® 8th/9th Gen CPU & Q370 PCH, 2x LAN, 10x USB |
| Accesorii optionale | |
| 1-E09A22102 | Adapter AC/DC 24V/9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch |
| 1-E09A22801 | Adapter AC/DC 24V/11.67A 280W with 3pin Terminal Block Plug 5.0mm Pitch |
| 1-TPCD00002 | Power Cord, European Type, 180cm |
| Memorie RAM | |
| Stocare SSD/HDD | |
| Sistem de operare Windows | |
| Packing List | |
| 1x RCO-3000-CFL Series Embedded System | |
| 1x Utility DVD Driver | |
| 1x Wall Mount Kit | |
| 1x Accessory Kit | |
| 1x DVI to VGA Adapter | |
