IES-1162GC
2.565 lei fara TVA
Fast Ethernet (10/100Mbps)
16 porturi
Combo SFP Gigabit (10/1001000Mbps)
2 porturi

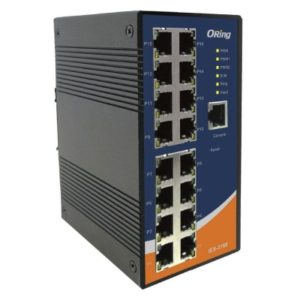

Switch industrial fara management cu 18 porturi- 16 Ethernet 10/100Mbps si 2 Combo SFP Gigabit 10/100/1000Mbps
- 2 porturi Gigabit Combo: Base-T(X) sau sloturi SFP pentru fibra optica;
- Porturi cu autonegociere a vitezei Auto MDI/MDI-X;
- Suporta flow-control;
- Suporta transmisie tip store and forward;
- Design slim, pentru instalare usoara;
- Alarma de eroare pe releu 1A / 24V;
- Alimentare redundanta;
- Carcasa metalica, protectie IP-30;
- Montare pe sina DIN sau wallmount;
- Temperatura de functionare: -40 ~ 70 °C.
ALTE DETALII TEHNICE GASITI MAI JOS IN PAGINA.
Specificatii
Modele
Specificatii
| Porturi | |
| Ethernet | 16 x 10/100Base-T(X) ports cu Auto MDI/MDI-X |
| Slot SFP Gigabit Combo | 2 x 1000Base-X SFP sau 2 x 10/100/1000Base-T(X) |
Tehnologie | |
| Standarde | IEEE 802.3 for 10Base-T |
| IEEE 802.3u for 100Base-TX | |
| IEEE 802.3z for 1000Base-X | |
| IEEE 802.3ab for 1000Base-T | |
| IEEE 802.3x for Flow control | |
| Tabel MAC | 8192 |
| Procesare | Store-and-Forward |
Proprietati switching | |
| Latenta | 9 µs |
| Switching bandwidth | 7,2Gbps |
Indicatoare LED | |
| Alimentare (3 LED-uri) | Verde : (ON) alimentat / (OFF) nealimentat |
| Eroare de alimentare | Portocaliu : (ON) Eroare |
| Portul 10/100Base-T(X) RJ45 | Verde : (ON) Link up / (Blinking) Acting / (OFF) Link down |
| Portocaliu : (ON) Coliziune | |
| Portul 10/100/1000Base-T(X) RJ45 | Verde : (ON) Link up / (Blinking) Acting / (OFF) Link down |
| Verde : (ON) 1Gbps Portocaliu : (ON) 100Mbps (OFF) 10Mbps | |
| Portul 1000Base-X SFP | Verde : (ON) Link up / (Blinking) Acting / (OFF) Link down |
Alarme | |
| Releu | Iesire 1A @ 24V |
Alimentare | |
| Tensiune de alimentare | Alimentare redundanta 12~48VDC cu conector bloc terminal cu 6 pini |
| Consum | 9W |
| Protectie la supracurent | Prezenta |
| Protectie la inversarea polaritatii | Prezenta |
Caracteristici mecanice | |
| Carcasa | IP-30 |
| Dimensiuni (W x D x H) | 96.4(W)x108.5(D)x154(H) mm (3.8 x 4.27 x 6.06 inch) |
| Greutate (g) | 1010 g |
Conditii de mediu | |
| Temperatura de stocare | -40 to 85°C (-40 to 185°F) |
| Temperatura de functionare | -40 to 70°C (-40 to 158°F) |
| Umiditatea de functionare | 5% to 95% Non-condensing |
Certificari | |
| EMC | CE EMC (EN 55035, EN 55032), EN50121-4 (compliant), FCC Part 15 B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), |
| IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP) | |
| Socuri | IEC 60068-2-27 |
| Cadere libera | IEC 60068-2-31 |
| Vibratii | IEC 60068-2-6 |
| Siguranta | EN60950-1 |
Modele
| Modele | |
| IES-1162GC | Industrial 18-port unmanaged Ethernet switch with 16×10/100Base-T(X) and 2xGigabit combo ports, SFP socket |
