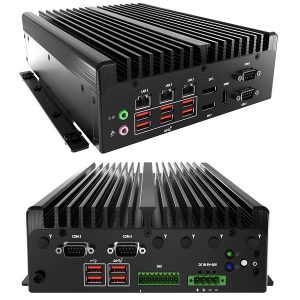

BCO-3000
Calculator industrial fanless cu procesor Intel Core i9, i7, i5 sau i3, 4 porturi seriale, 3 porturi Gigabit Ethernet, 1 HDMI
- Design fara componente in miscare si de dimensiuni reduse;
- Procesor: Intel Core 12/13/14th Gen Raptor Lake-S / Alder Lake-S i9/i7/i5/i3 sau
Celeron / Pentium; - Memorie: max. 64GB DDR4;
- Video: Triple Display, 1 x HDMI, 2 x Display Port, pana la 4096 x 2304;
- Stocare: M.2 M-Key HDD/SSD;
- Retea: Gigabit LAN x 3;
- Seriale: RS-232/422/485 x 2, RS-485 x 2;
- Porturi: USB 3.2 x 8, USB 2.0 x 2;
- Expansiune: M.2 B-Key, M.2 E-Key;
- DI / DO: 8DI, 8DO;
- Temperatura de functionare: 0 ~ 50 °C.
ALTE DETALII TEHNICE GASITI MAI JOS IN PAGINA.
Specificatii
Modele si Accesorii
Specificatii
| Sistem | |
| Procesor | Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron |
| Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron | |
| Chipset | SoC integrated |
| LAN | Intel® I225LM PCIe 2.5GbE LAN |
| Intel® I225V PCIe 2.5GbE LAN | |
| Intel® I225LV PCIe 2.5GbE LAN | |
| Audio Codec | Realtek ALC897 |
| Memorie | DDR4 3200MT/s SODIMM |
| Max. up to 64 GB | |
| BIOS | AMI UEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. |
| TPM | TPM 2.0 |
| Monitor | |
| DisplayPort | 2x Dual Mode DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1x HDMI 1.4b Max Resolution 4096 x 2304 @24Hz |
| Multiple Display | Triple Display |
| Stocare | |
| M.2 M-Key | 1x M.2 M key Type (2242/2280) |
| Expansiune | |
| M.2 B-Key | 1x M.2 B key Type: 3042 with Nano SIM Holder |
| M.2 E-Key | 1x M.2 E key Type: 2230 |
| I/O | |
| COM | 4x DB9 |
| COM1: RS232/422/485, COM2: RS232/422/485, COM3: RS485, COM4: RS485 | |
| DIO | 8 in / 8 out (Isolated) |
| USB | 6x USB 3.2 Gen2, 2x USB 3.2 Gen1, 2x USB 2.0 Type-A |
| LAN | 3x RJ45 (2.5GbE) |
| Audio | Line-out/Mic-in |
| Others | 5x Antenna Holes |
| 1x Power button, 1x HD LED, 1x Power LED | |
| Alimentare | |
| Intrare | AT/ ATX 9~36VDC |
| Conector alimentare | Bloc terminal cu 4 pini |
| Caracteristici de mediu | |
| Temperatura de operare | 0°C to 50°C |
| Temperatura de stocare | -30°C to 85°C |
| Umiditate | 10% to 95% (non-condensing) |
| Caracteristici mecanice | |
| Carcasa | Extruded Aluminum with Heavy Duty Metal |
| Dimensiuni | 192(W) x 240(D) x 69(H) mm |
| Greutate | kg |
| Montaj | Wall Mounting |
| DIN-Rail Mounting (Optional) | |
| Certificari | |
| Vibratii | With SSD: 5 Grms, 5 – 500 Hz, 0.5 hr/axis |
| Socuri | With SSD: 50G, half sine, 11ms |
| Standarde | CE, FCC Class A |
Modele si Accesorii
| Modele | |
| BCO-3000-RPL | Small Form Factor Computer with Intel Raptor Lake-S/ Alder Lake-S® CPU, 3x DP, 2x COM |
| Accesorii optionale | |
| 1-E09A06008 | Adapter AC/DC 12V 5A 60W with 3-pin Terminal Block Plug 5.0mm Pitch |
| 1-TPCD00002 | Power Cord, European Type, 180cm |
| Memorie RAM | |
| Stocare SSD/HDD | |
| Sistem de operare Windows | |
| Packing List | |
| 1x BCO-3000-RPL SMALL FORM FACTOR COMPUTER | |
| 1x Wall Mount Kit | |
| 1x Accessory Kit | |
